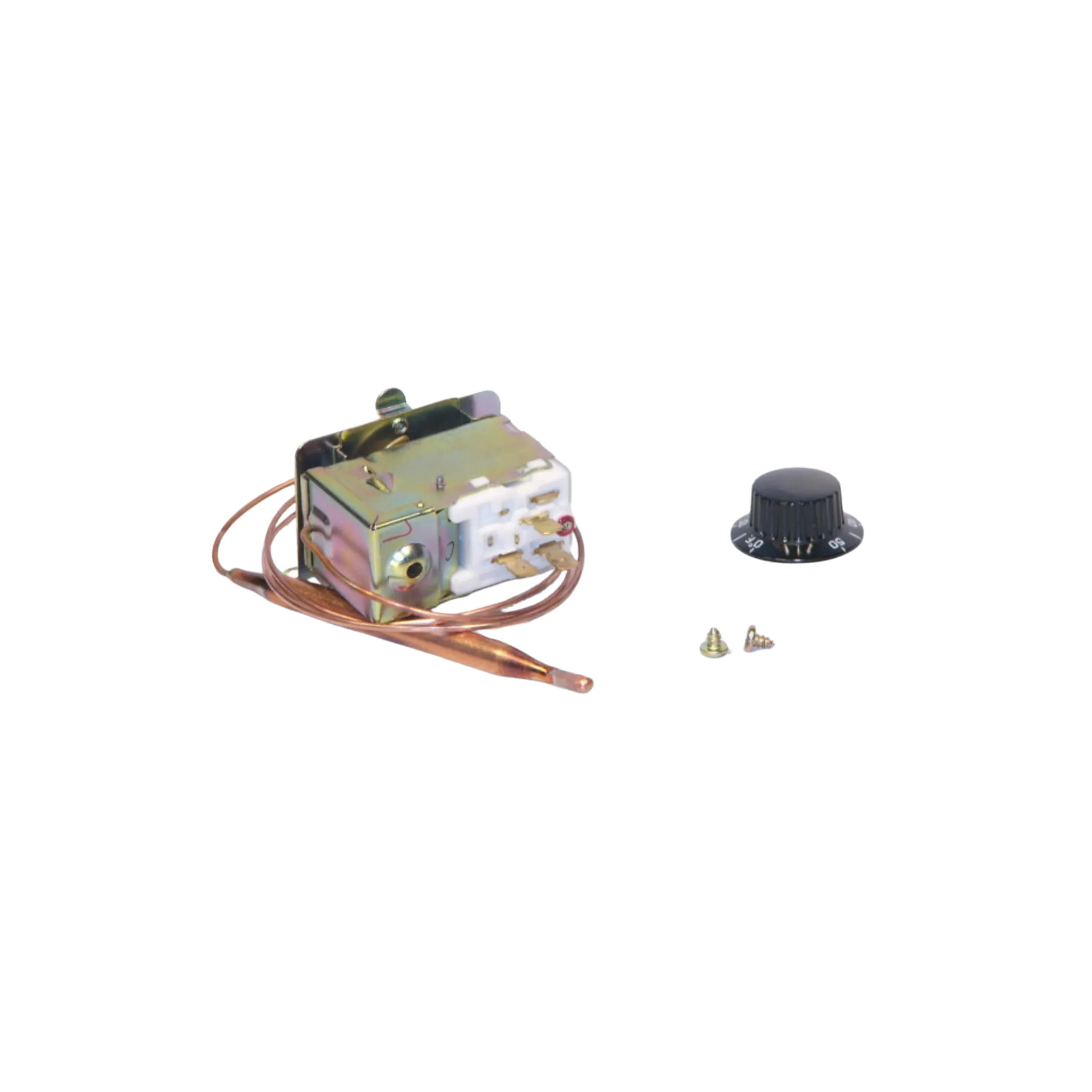

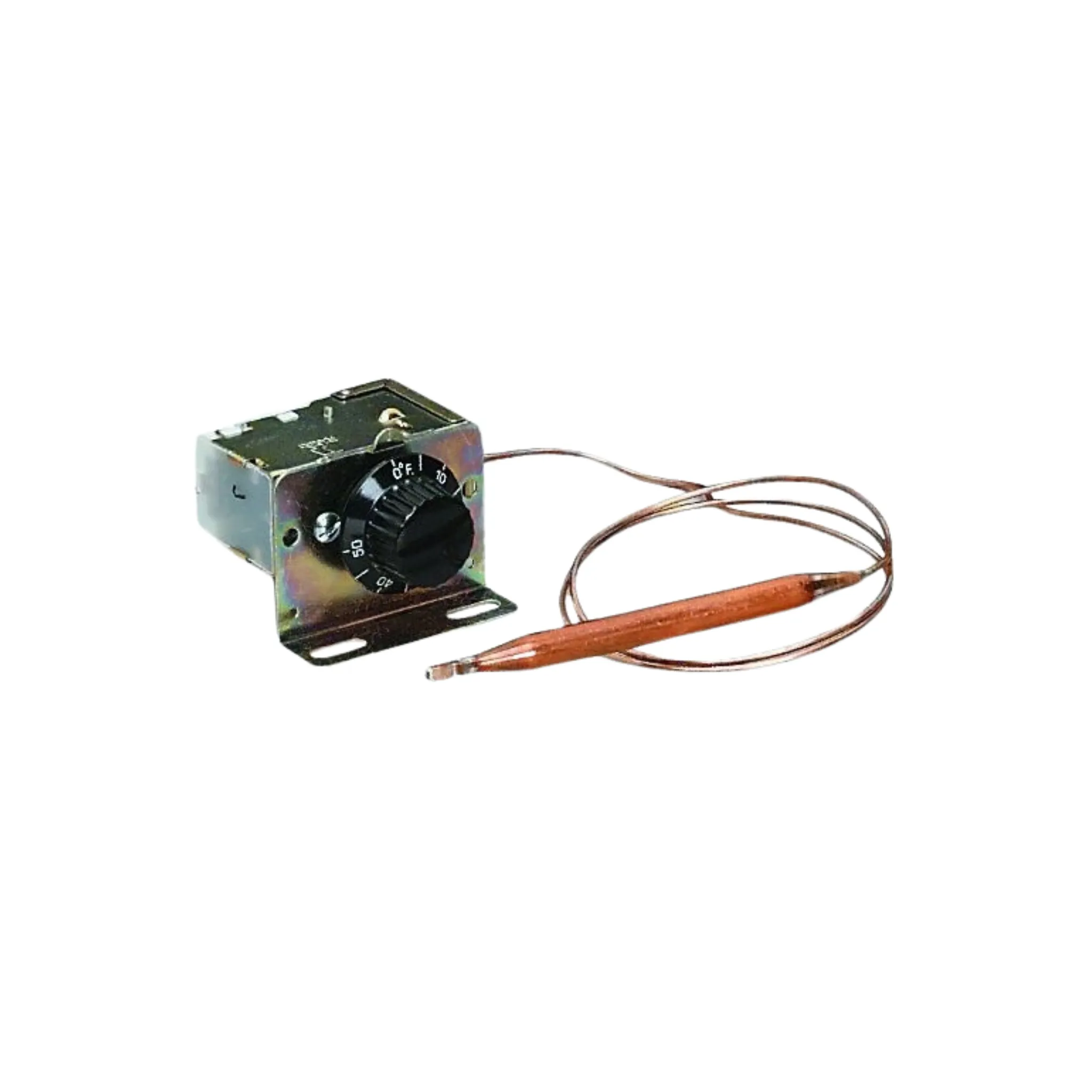

The Ranco Heat Pump Controls provide accurate control of temperature and defrost for heat pumps. The C12-2001 control is an adjustable resistance heat thermostat used to turn on heat in response to outdoor temperature. The E15-2601 provides field-adjustable timer control for de-icing of heat pump outdoor coils. Interlock prevents more than one defrost cycle per time period and temperature must be 28°F or lower to start.

Specifications:

Manufacturer: Ranco
Manufacturer Part Number: C12-2001
Product Type: Heat Pump
Voltage Rating: 120/240 V
Current Rating: 20 A
Switch Type: SPDT
Capillary Length: 30"
Temperature Rating: -1 to 59 Degrees F
Dimensions: 4.15" x 8.75" x 3.05"
Weight: 3.0 lb.
